The favorite for small productions and digital media applications. Do not let its diminutive build fool you though! This compact, lightweight powerhouse takes advanced imaging to the next level in terms of resolution, speed and workflow thanks to its rugged digital high-speed camera and advanced features.
The Miro product family follows the Phantom tradition in versatility by adapting to several imaging applications, and the Miro 320S is no exception.
With precise control over resolution, frame rate, exposure time and trigger point, this camera is ideal for applications ranging from industrial & scientific, to new media and TV production.
The Miro 320S is available with a variety of lens mounts, including Canon EOS, 35mm PL, Nikon-F, and C.
Optical low-pass filters are also available for applications where image quality is key.
Remote control of aperture and focus is a huge benefit when cameras are remotely located and/or difficult to reach.

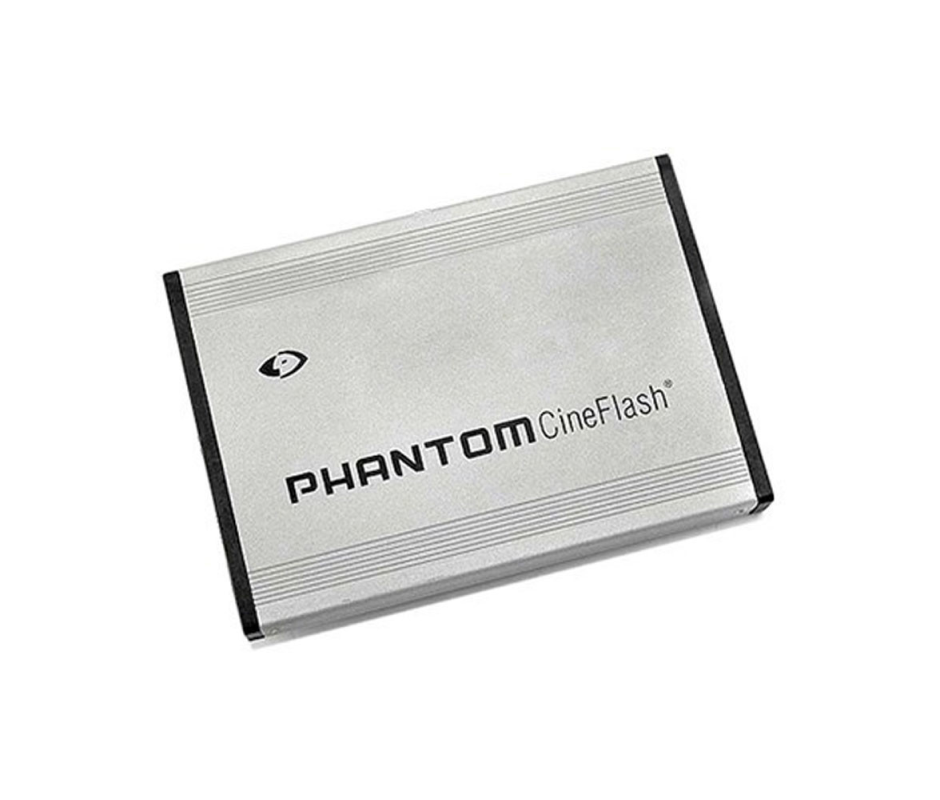

Workflow & Phantom CineFlash Storage Solution
Directly record up-to 12 Gigabytes of internal memory and preview the shot immediately by playing back over HD-SDI, or Gb Ethernet.
Save your shot by editing the clip and quickly transfer to an installed Phantom Cine Flash drive.
Alternatively, record the HD-SDI playback to a separate device. Re-arm the camera and you’re ready for the next shot.
Cine Flash drives are available in sizes up to 240 Gigabytes, and offer write speeds of 4GB/minute.
A full 12 GB Cine will save in less than 3 minutes.
Once the drive is full, simply remove it from the camera and download Cine Raw files via the Cine Flash Dock or over the camera’s Ethernet.
Specifications
The Miro 320S is based on a >2Mpx sensor with 3.2 Gpx/s throughout.
12-bit pixel depth, and uses micro-lenses on its custom-designed CMOS sensor to achieve exceptional light sensitivity.
Available with 3GB, 6GB or 12GB of internal RAM Memory.
Expected record times and maximum frame rates per resolution can be found in the tables to the right.
Accessibility

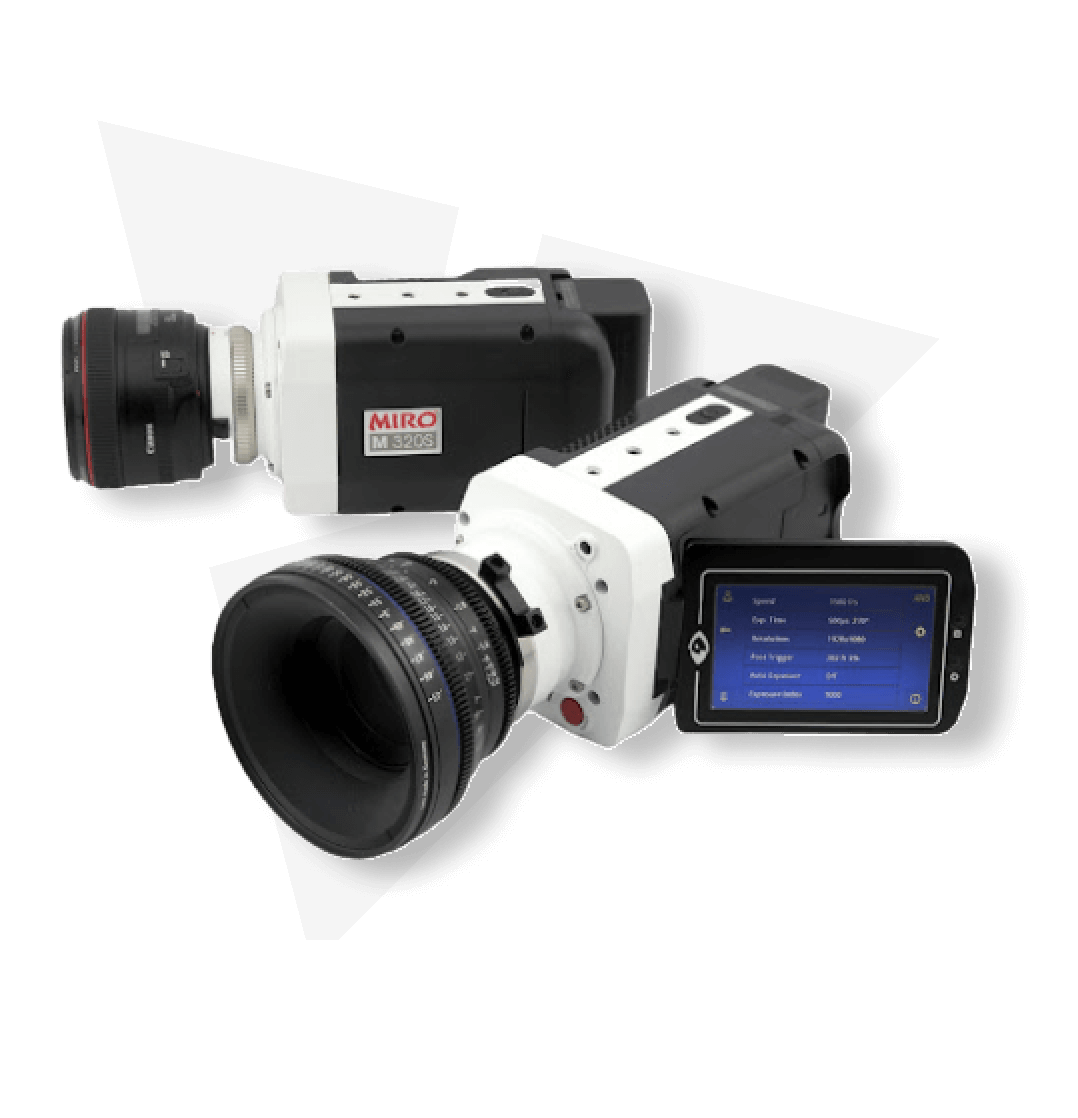

The advanced features and small, lightweight form factor makes the Miro M and LC320S the most accessible Phantom high speed cameras available today.
Compatible with a vast array of applications, the Miro can be used for scientific research, as a creative storytelling tool, and anywhere in between.
The possibilities are endless with the Phantom Miro 320S at your fingertips.
TECHNICAL SPECIFICATIONS
12 bit, 2 Megapixel 35 mm CMOS sensor 1920 x1080 @ 1540 FPS 35mm depth of field ISO (ISO 12232 SAT method): Mono: 12,500 T; 5000 D, Color: 1600 T; 1250 D Compact, rugged design.

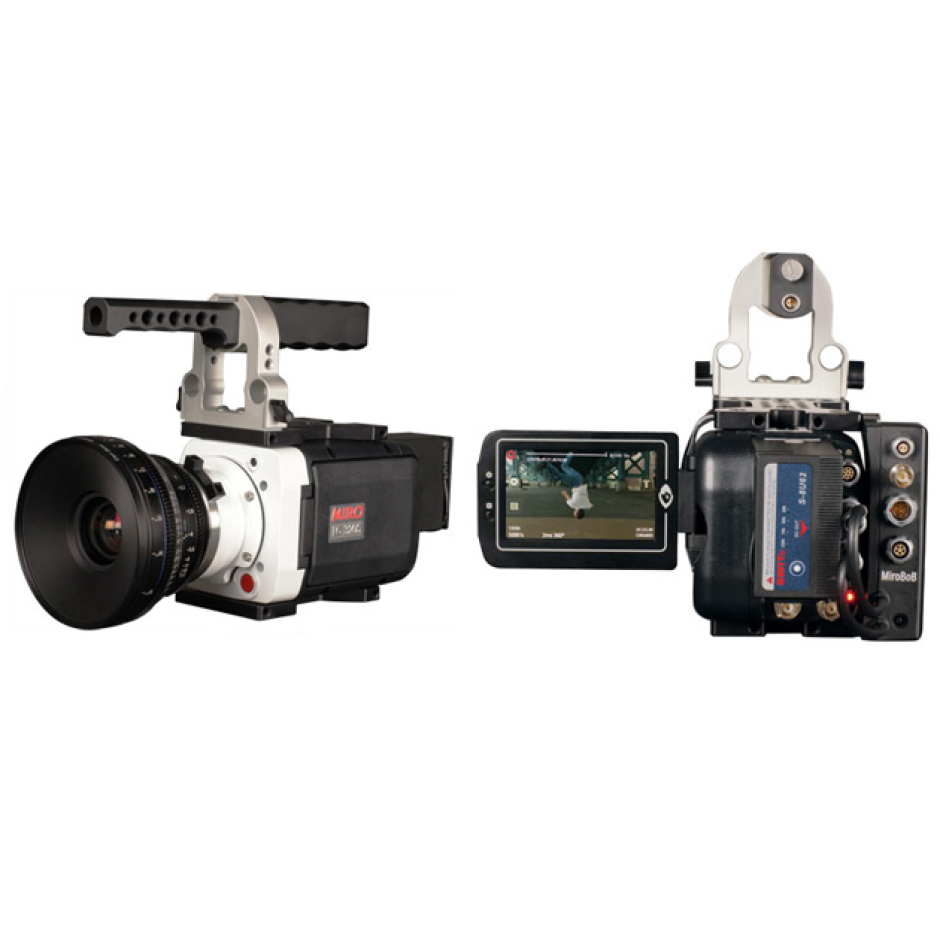

LC320S includes flip-out LCD touch screen for camera image monitoring and control.

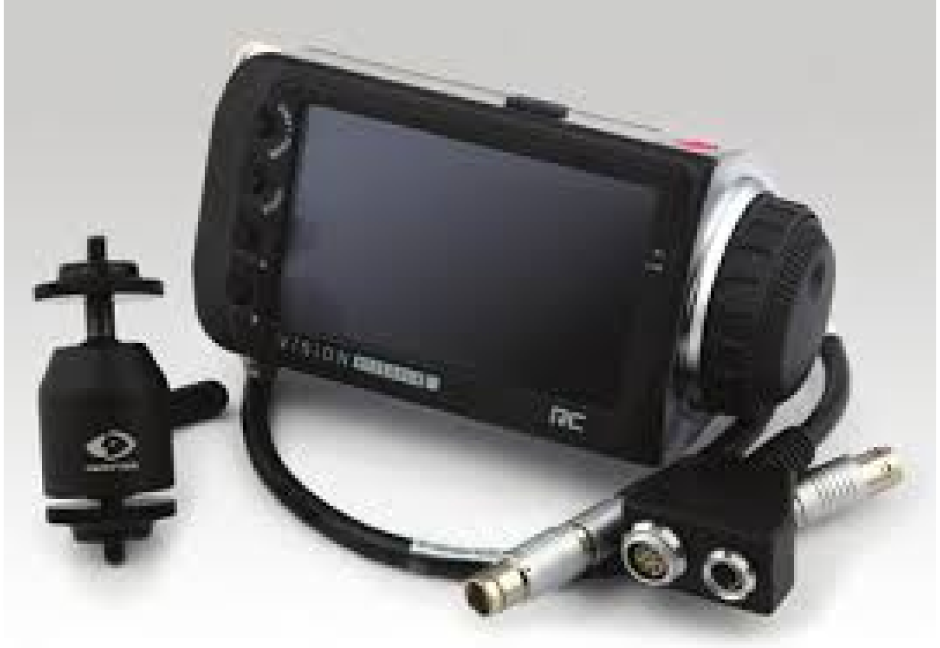

PL, Nikon F, and Canon EOS lens mounts Phantom RCU compatible.
