When it's too fast to see, and too important not to.

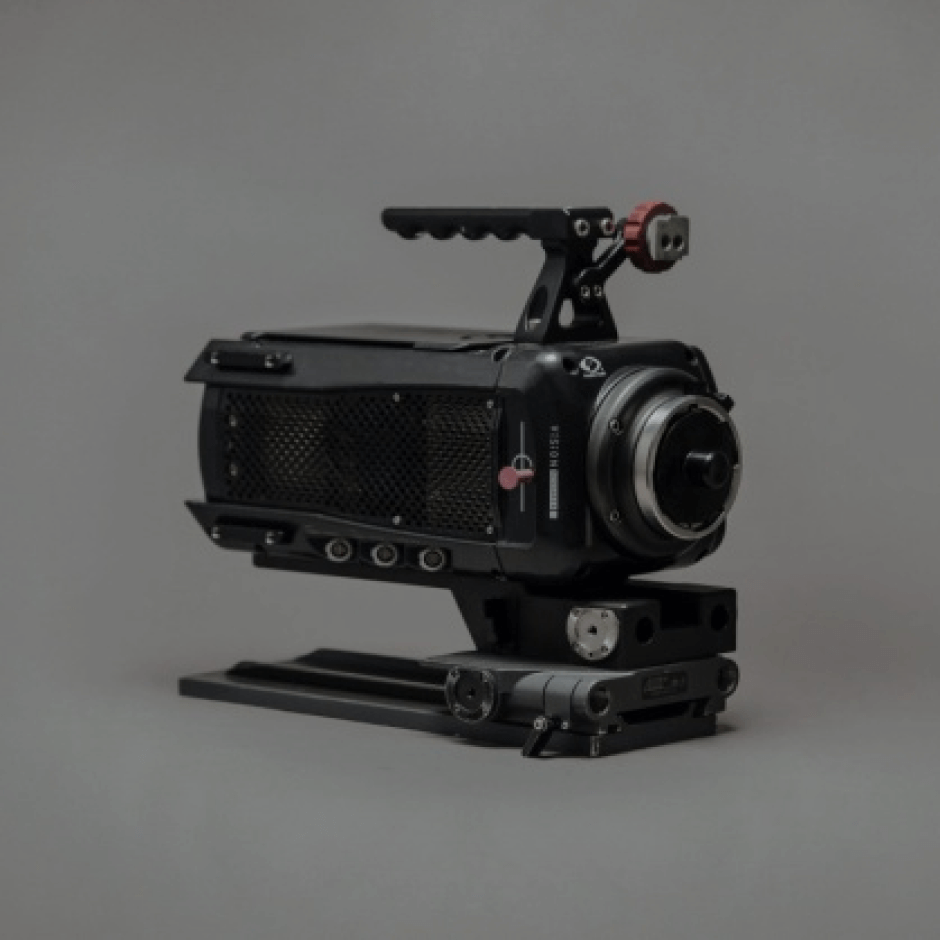

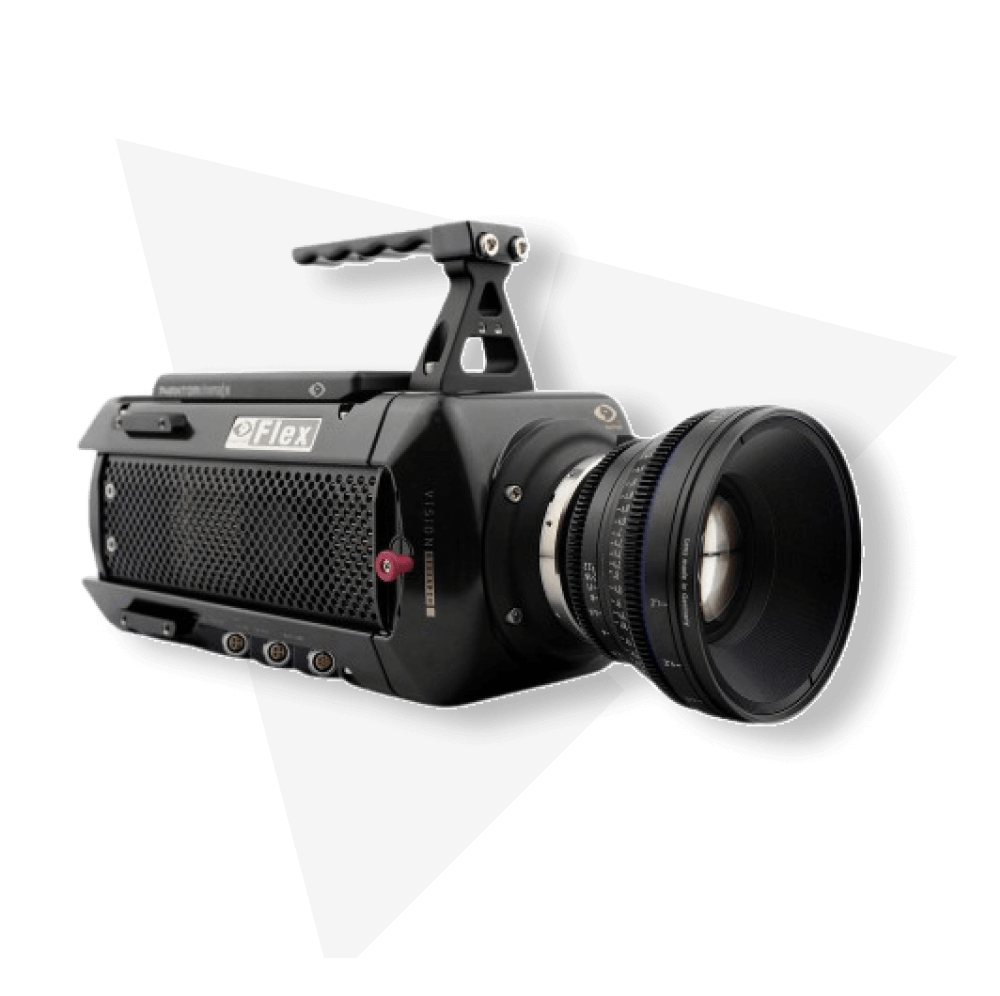

This second-gen high-speed camera follows the legacy of the Phantom HD – a camera which pioneered high-speed imaging for television and motion picture production. The Phantom Flex provides exceptional flexibility in frame rate, workflow, lens format and overall storytelling ability.
A camera that changed the world of high-speed imaging for television and motion picture production forever.
Provides exceptional flexibility in frame rate, workflow, lens format and overall storytelling ability.
It goes beyond HD and supports 4 megapixel imaging when the ultimate in image resolution is required.
Flex your creative muscle with a camera that can shoot from 10 frames-per-second to over 10,000 frames-per-second depending upon shooting mode and resolution.
Maximum control and flexibility

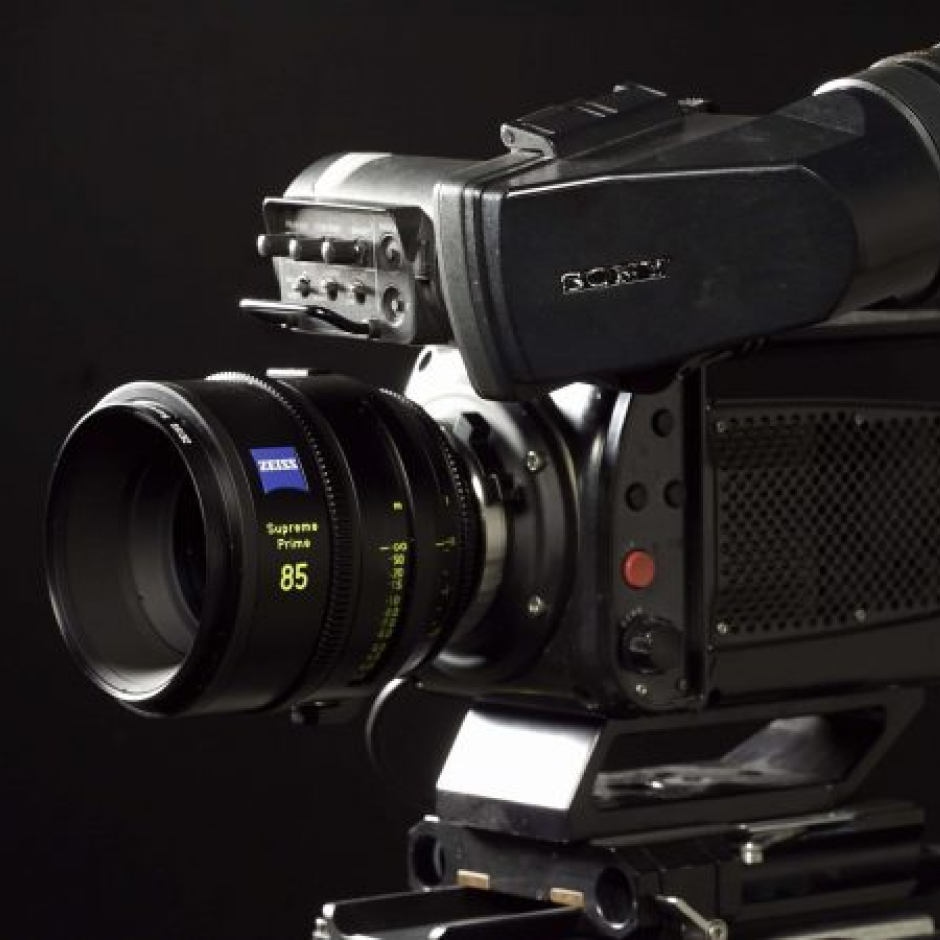

Flexible lens options let you choose between 35mm (PL, Canon EOS, Nikon F,Panavision), Super 16mm, and 2/3” lens alternatives.
User selectable shooting modes allow you to adapt the camera to the shooting environment.
In Standard Mode, the Phantom Flex is just like any other Phantom digital high-speed camera.
Shoot at resolutions up to 2560 x 1600 pixels at anywhere from 10 frames-per-second up to 1455 frames-per-second (fps).
As you reduce the resolution, the maximum speed increases – up to 2570 fps at 1920 x 1080, 5385 fps at 1280 x 720, and 10,900 fps at 640 x 480.
Multi-sampling image enhancement technology
Results in electronic image stability unprecedented in digital high-speed cameras.
Ultimate in image quality at speeds up to 1275 fps at 1920 x 1080 or 2660 fps at 1280 x 720 can be achieved.
Dual-link HD-SDI ports
Independent of the camera resolution.
This technique increases the dynamic range in the video signal and virtually eliminates edge artifacts sometimes seen in other Bayer pattern cameras.
If you choose to oversample when you are using a raw digital workflow, you can still get the benefits of increased dynamic range and fewer edge artifacts in a saved RGB file because the Phantom Camera Control software.
TECHNICAL SPECIFICATIONS
Shoot 10 – 1455 fps at 2560 x 1600
Shoot 10 – 2570 fps at 1920 x 1080
HQ Mode for ultimate image quality
Raw digital and ⁄or video workflow solutions
Flexible lens options
Up to 2,570 fps at 1920×1080 in Standard Mode 12-bit pixel depth
HQ Mode provides ultimate in image stability under changing shooting conditions

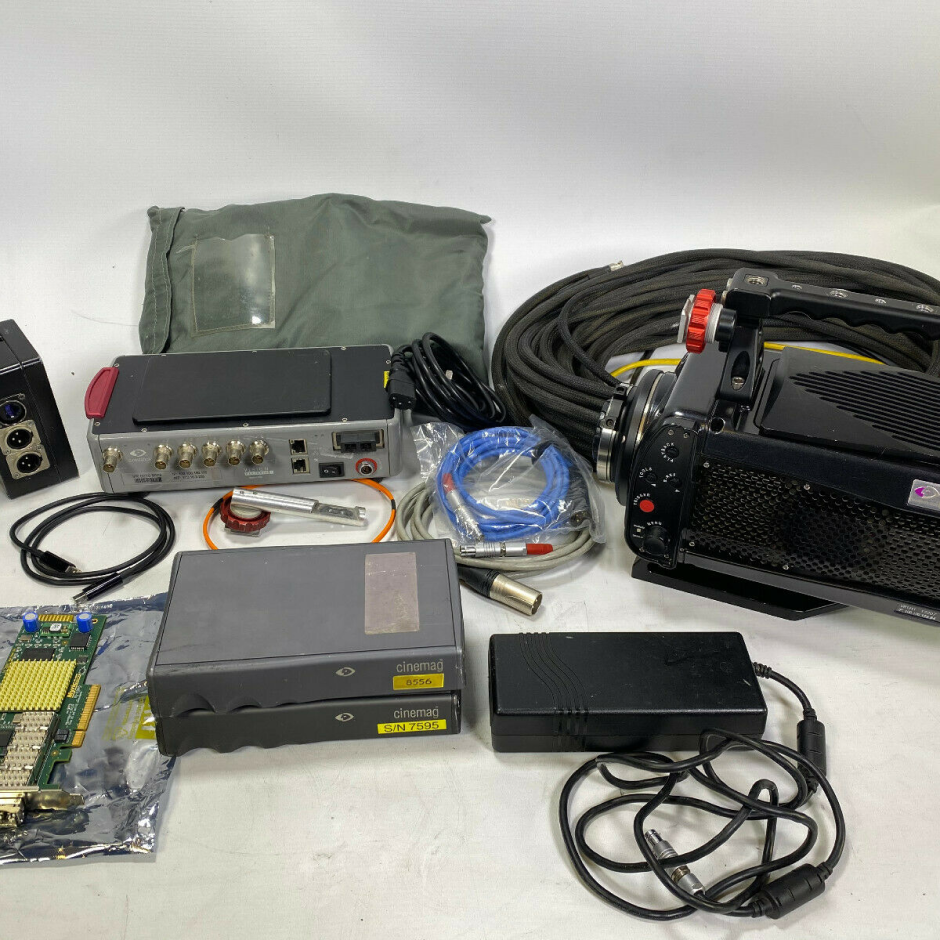

Phantom CineMag compatible, CineMag interface has field-replaceable pin array
2 x 4:2:2 HD-SDI video ports, can be configured as dual-link 4:4:4 video, (4:4:4 not available at 60fps video formats)
